52EH

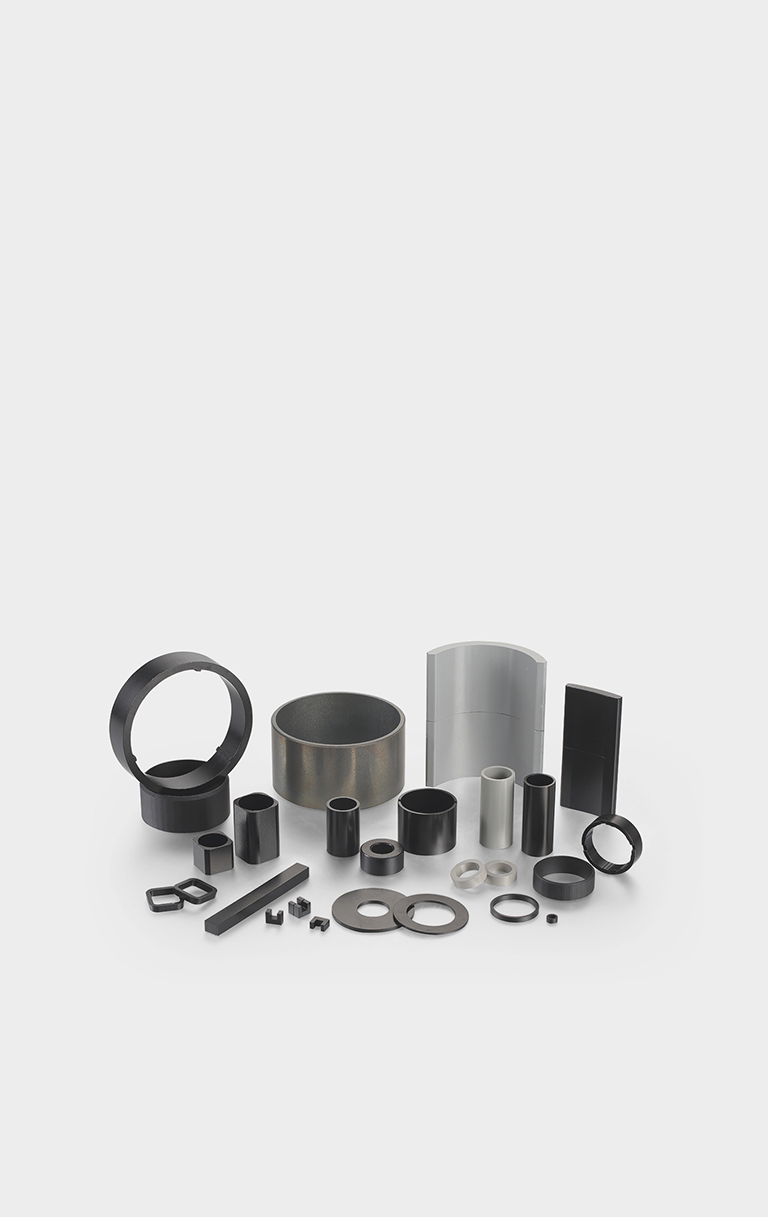

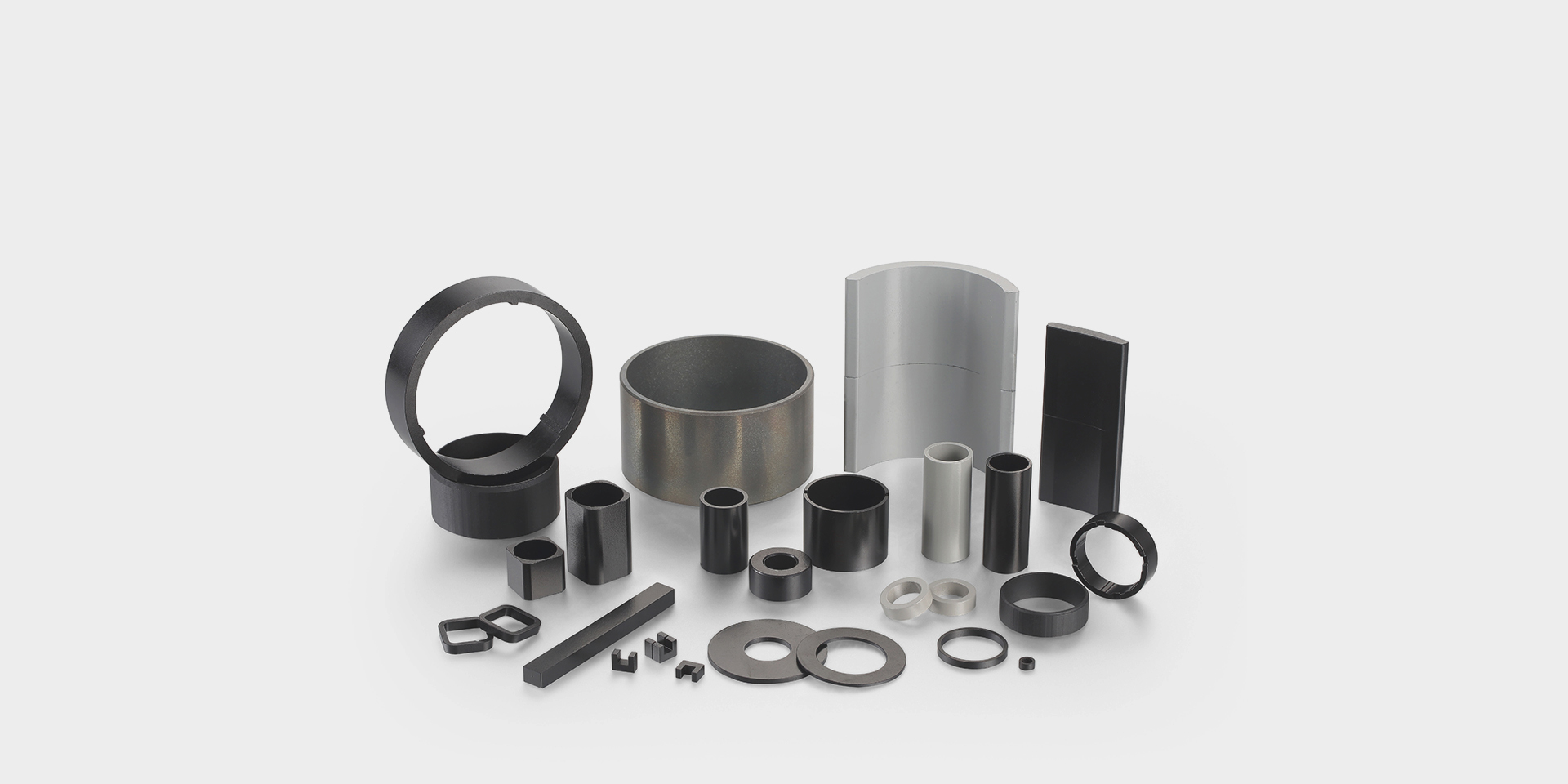

A permanent magnet made by mixing NdFeB magnetic powder with resin or a binder, then shaping it via compression molding or injection molding. It’s easy to process into complex forms.
|
Grade |
Br | HcB | HcJ | (BH)max | ||||
|---|---|---|---|---|---|---|---|---|
| mT | kGs | kA/m | kOe | kA/m | kOe | kJ/? | MGOe | |
| BNP-3 | 400-510 | 4.0-5.1 | 240-320 | 3.0-4.0 | 504-720 | 6.3-9.0 | 24-34 | 3.0-4.2 |
| BNP-4 | 460-520 | 4.6-5.2 | 240-320 | 3.0-4.0 | 504-720 | 6.3-9.0 | 32-38 | 4.0-4.8 |
| BNP-5 | 470-550 | 4.7-5.5 | 240-360 | 3.0-4.5 | 520-720 | 6.5-9.0 | 40-50 | 5.0-6.2 |
| BNP-6 | 550-600 | 5.5-6.0 | 320-376 | 4.0-4.7 | 560-720 | 7.0-9.0 | 45-54 | 5.8-6.8 |
| BNP-7 | 570-650 | 5.7-6.5 | 320-408 | 4.0-5.1 | 560-720 | 7.0-9.0 | 52-64 | 6.5-8.0 |

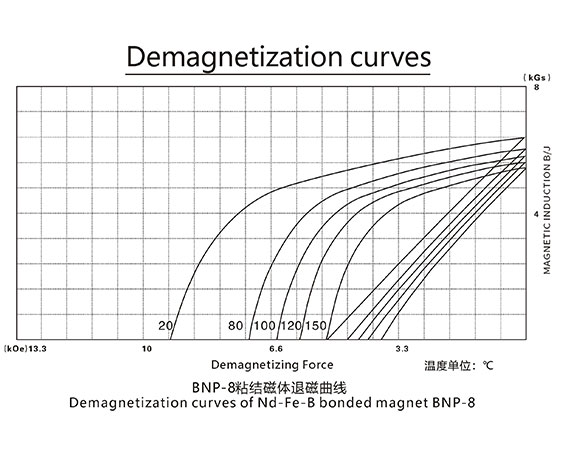

| BNP-8 | 620-670 | 6.2-6.7 | 400-456 | 5.0-5.7 | 640-800 | 8.0-10.0 | 64-76 | 8.0-9.5 |
| BNP-8A | 620-680 | 6.2-6.8 | 400-480 | 5.0-6.0 | 1040-1280 | 13.0-16.0 | 65-73 | 8.2-9.2 |
| BNP-9 | 650-700 | 6.5-7.0 | 416-456 | 5.2-5.7 | 680-800 | 8.5-10.0 | 68-76 | 8.5-9.5 |

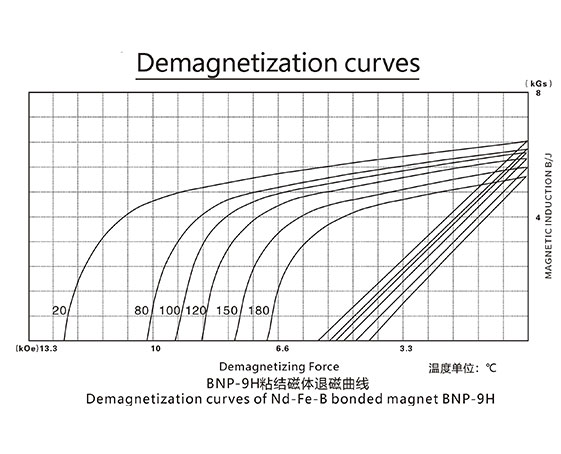

| BNP-9H | 650-700 | 6.5-7.0 | 432-488 | 5.4-6.1 | 920-1040 | 11.5-13.0 | 72-82 | 9.0-10.2 |
| BNP-10 | 670-720 | 6.7-7.2 | 424-480 | 5.3-6.0 | 640-800 | 8.0-10.0 | 76-84 | 9.5-10.5 |
| BNP-11 | 680-740 | 6.8-7.4 | 400-480 | 5.0-6.0 | 640-800 | 8.0-10.0 | 80-88 | 10.0-11.0 |
| BNP-12D | 720-770 | 7.2-7.7 | 440-520 | 5.5-6.5 | 720-880 | 9.0-11.0 | 88-96 | 11.0-12.0 |

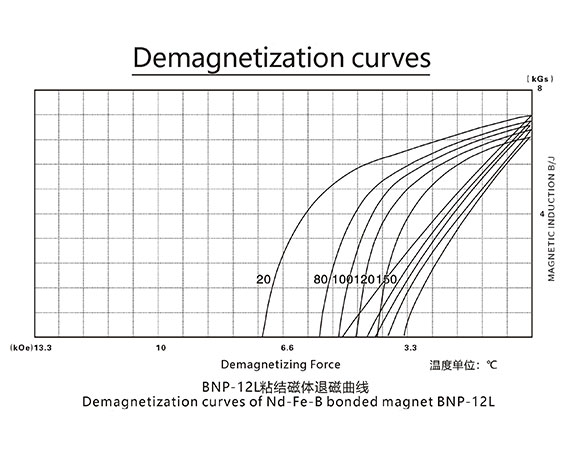

| BNP-12L | 730-770 | 7.3-7.7 | 368-448 | 4.6-5.6 | 520-640 | 6.5-8.0 | 80-88 | 10.0-11.0 |
| BNP-13L | 780-830 | 7.8-8.3 | 400-480 | 5.0-6.0 | 480-640 | 6.0-8.0 | 88-104 | 11.0-13.0 |
| Grade |
Matrix |
Br | HcB | HcJ | (BH)max | ||||
|---|---|---|---|---|---|---|---|---|---|
| mT | kGs | kA/m | kOe | kA/m | kOe | kJ/? | MGOe | ||
| BNI-2.5 | PA12 | 350-400 | 3.5-4.0 | 200-280 | 2.5-3.5 | 320-520 | 4.0-6.5 | 20-28 | 2.5-3.5 |
| BNI-3 | 350-450 | 3.5-4.5 | 224-304 | 2.8-3.8 | 400-656 | 5.0-8.2 | 22-30 | 2.7-3.7 | |
| BNI-4 | 400-500 | 4.0-5.0 | 240-320 | 3.0-4.0 | 560-720 | 7.0-9.0 | 29-37 | 3.6-4.6 | |
| BNI-5 | 450-550 | 4.5-5.5 | 304-360 | 3.8-4.5 | 640-800 | 8.0-10.0 | 38-46 | 4.7-5.7 | |
| BNI-6 | 500-600 | 5.0-6.0 | 328-384 | 4.1-4.8 | 640-800 | 8.0-10.0 | 46-54 | 5.7-6.7 | |
| BNI-7 | 550-650 | 5.5-6.5 | 360-416 | 4.5-5.2 | 640-800 | 8.0-10.0 | 52-60 | 6.5-7.5 | |
| BNI-5SR | PPS | 450-550 | 4.5-5.5 | 320-440 | 4.0-5.5 | 880-1040 | 11.0-13.0 | 36-44 | 4.5-5.5 |
| BNI-6 | 500-550 | 5.0-5.5 | 320-400 | 4.0-5.0 | 720-800 | 9.0-10.0 | 40-48 | 5.0-6.0 | |
| BNI-6SR | 500-600 | 5.0-6.0 | 320-440 | 4.0-5.5 | 880-1040 | 11.0-13.0 | 44-52 | 5.5-6.5 | |
| Grade | Matrix | Br | HcB | HcJ | (BH)max | ||||
|---|---|---|---|---|---|---|---|---|---|
| mT | kGs | kA/m | kOe | kA/m | kOe | kJ/? | MGOe | ||
| AFI-1.5 | PA6 + Ferrite | 225-265 | 2.25-2.65 | 160-200 | 2.00-2.50 | 230-270 | 2.87-3.37 | 11.2-12.8 | 1.40-1.60 |
| AFI-1.8 | 260-300 | 2.60-3.00 | 175-215 | 2.19-2.69 | 215-250 | 2.69-3.15 | 14.4-16.0 | 1.8-2.0 | |
| AFI-1.9 | 265-305 | 2.65-3.05 | 180-220 | 2.25-2.75 | 220-255 | 2.75-3.20 | 15.2-16.8 | 1.9-2.1 | |
| AFI-2.0 | 275-315 | 2.75-3.15 | 185-225 | 2.31-2.81 | 225-260 | 2.81-3.25 | 16-17.6 | 2.0-2.2 | |
| ANI-12 | PA12 + NdFeB | 700-800 | 7.0-8.0 | 445-500 | 5.6-6.3 | 915-995 | 11.5-12.5 | 92-100 | 11.5-12.5 |

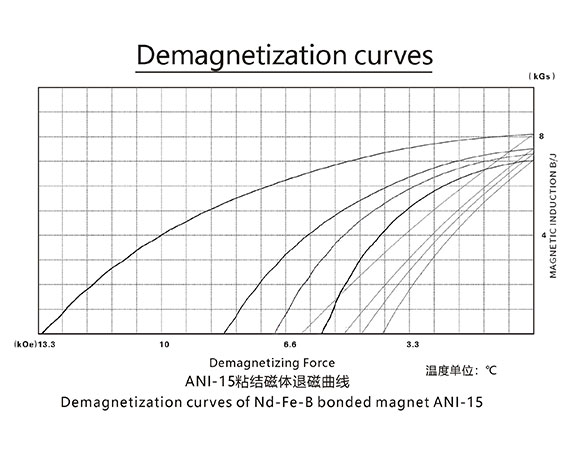

| ANI-15 | 770-850 | 7.7-8.5 | 480-560 | 6.0-7.0 | 1040-1200 | 13-15 | 104-116 | 13-14.5 | |
